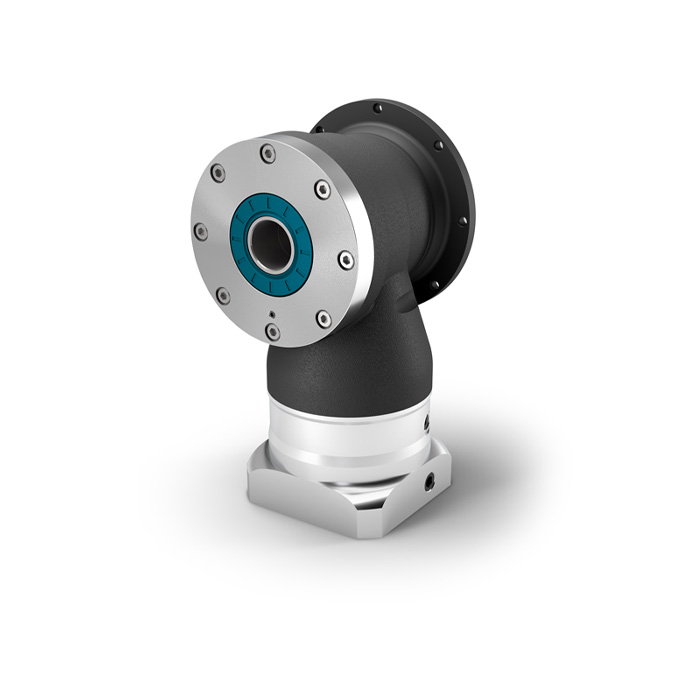

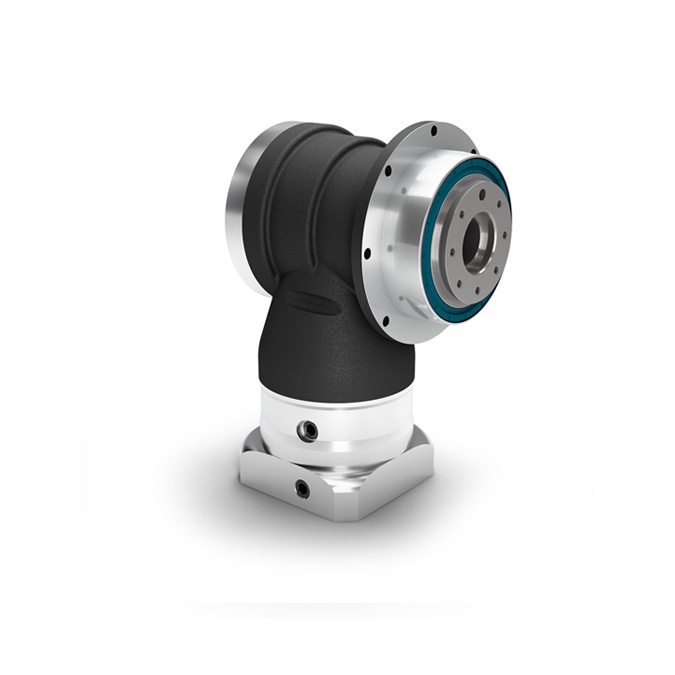

Right Angle Planetary Gearbox with Output Flange WPSFN

The shortest spiral-toothed right angle gearbox with flange output shaft and hollow shaft.

Our WPSFN is extremely light and easy to integrate thanks to its standardized flange interface. It achieves optimized synchronization with the spiral gearing and the helical-toothed planetary stage for the best surface qualities. The shortest right angle precision gearbox with integrated hollow shaft provides you with new structural solutions.

DetailsParameter

WPSFN hollow shaft planetary gearbox. The shortest hypoid right-angle gear units with flanged output shaft and hollow shaft Our WPSFN series can be integrated into systems extremely easily and quickly thanks to their standardized flange interface. Synchronized running performance is greatly optimized to achieve excellent surface quality by means of hypoid gears and helical planetary systems. The shortest right-angle precision gearbox, with integrated hollow shaft output, brings you a new output connection solution.



Product description

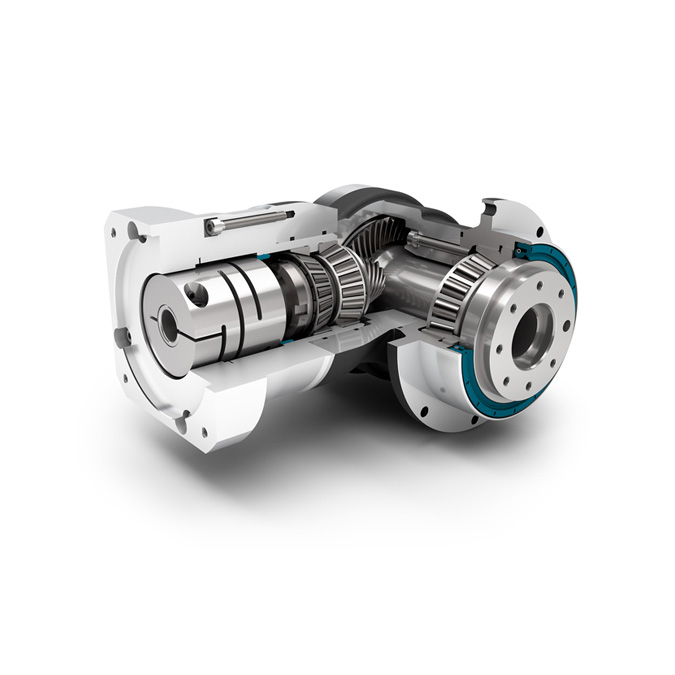

The hollow shaft gearbox of WPSFN flange output is a right-angle gearbox, which can play the best effect in a limited space; the use of hypoid gears further improves the processing quality of the gearbox; it is equipped with preloaded angular contact Roller bearing, round extra large output flange, can choose to reduce the return clearance, rated torque 22-625Nm, radial force 2150-12000N, axial force 4200-9500N, return clearance 3-5 arc minutes. The service life of this gearbox is 20000h, the working temperature range is -25-90℃, there are three lubrication methods of standard, low temperature and food grade, and the torsional stiffness range is 1.9-111Nm. Different specifications and models have different selection parameters. type parameter. Our angular planetary gear units with output flange stand out for their compact flange connection. The right-angle construction facilitates space-saving positioning of the drive system, giving you maximum design freedom.


The geometry of the output side of the planetary gearbox is oriented towards the most common industrial robots. The advantage of dimensioning according to EN ISO 9409-1 is the quick and easy connection of other drive components such as turntables, linear units or couplings that comply with the standard. This makes it easy and quick to establish the mechanical connection of the planetary gearbox with output flange to your machine. In addition, the connection between the planetary gear unit and the machine tool is secured by locating pin holes built into the output flange. Due to the compact design, the flanged output shaft is not only very space-saving, but also has a high torsional strength. This advantageous characteristic of the gear unit is confirmed when driving turntables or other components: high precision and fast cycling, even when the direction of movement is alternated. The drive flange of the angular planetary gearbox can be individually adapted to the motor. The compact unit of angle gearbox and servo motor increases flexibility.


For added structural flexibility, the angular planetary gearbox with output flange is lubricated for life and can be installed and used in all spatial positions due to its design. Therefore, you can flexibly design the construction space regardless of the positioning of the drive unit.



Product advantages


Low installation height saves space


Improve quality with high-grade gear teeth


Standardized flange connection with hollow shaft


completely sealed


runs very quietly


Can be installed anywhere


Optional


Various types of output shafts


return clearance


Lubricate


Optimized tensioning system


Various types of drive flanges


installed pinion




Use


Packaging equipment, machine tools, food industry




Features


Quiet operation, precision type, flange interface




Gearbox characteristics WPSFN064 WPSFN090 WPSFN110 WPSFN140 P
Reduer  4, 5, 7, 8, 10 1
Reduer 16, 20, 25, 28, 32, 35, 40, 50, 70,100 2
Service life h
20.000
Service life atT2N×0.88 h 30.000
Efficiency at full load % 94/93
Min operating temperature/max operating temperature -25/90
Protection class IP65
Standard lubrication Grease (lifetime lubrication)
Food grade lubrication Grease (lifetime lubrication)
Installation position Any
Standard backlash arcmin <5
Reduced backlash arcmin <3
Torsional stiffness Nm/arcmin 1.9-6.9 4.0-20.0 10.1-44.0 26.0-111.0
Gearbox weight kg 3.5-4.0 5.6-7.0 9.0-11.7 19.2-26.0
Standard surface Housing: Steel - heat-treated and post-oxidized(black)
Running noise dB/(A) 66 67 68 70
Max bending moment based on the gearbox input flange Nm 12 12/25.5 25.5/53 53/120

Nominal Output torque

WPSFN064 WPSFN090 WPSFN110 WPSFN140 I P
45 90 160 320 4 1
42 75 140 280 5
28 51 91 189 7
27 50 90 180 8
22 40 75 160 10
62 130 310 625 16 2
62 130 300 560 20
60 120 255 540 25
62 112 204 364 28
62 108 200 360 32
60 123 255 455 35
60 123 250 450 40
60 110 200 375 50
37 78 175 355 70
28
59 140 305 100


Output shaft loads

WPSFN064 WPSFN090 WPSFN110 WPSFN140
Radial force for 20000 h 2400 4400 5500 12000
2150 3950 4900 12000
Axial force for 20000 h 4200 7200 9500 8500
4300 8200 9500 8500
Radial force for 30000 h 2100 3900 4800 11000
1900 3500 4350 11000
Axial force for 30000 h 3700 6300 8400 7500
3800 7200 8400 7500
Tilting moment for 20000 h  200 484 689 1989
132 326 475 1030
Tilting moment for 30000 h  175 429 601
1823
117 289 422 944


Geometry

WPSFN064 WPSFN090 WPSFN110 WPSFN140 P
Pitch circle diameter output shaft  31.5
50 63 80
Centering diameter output flange 64 90 110 140
Flange diameter output 86 118 145 179
Hollow shaft diameter 17 25 35 50 1
Min. total lenght 104.5 132 153.5 201.5 1
122.5 139.5 154 224 2
Output  flange length 19.5 30 29 38
